Custom Membrane Keypad Manufacturer: How to Choose the Right Supplier
When you need a custom membrane keypad for industrial equipment, medical devices, control panels or electronic products, choosing the right membrane keypad manufacturer is just as important as choosing the keypad design itself.
A reliable manufacturer should be able to provide more than a printed graphic overlay. The supplier should understand electrical circuit design, tactile feedback, materials, adhesives, metal domes, backlighting, environmental requirements and final assembly.
What Is a Custom Membrane Keypad?
A custom membrane keypad is a low-profile human-machine interface designed according to the customer's mechanical, electrical and graphic requirements.

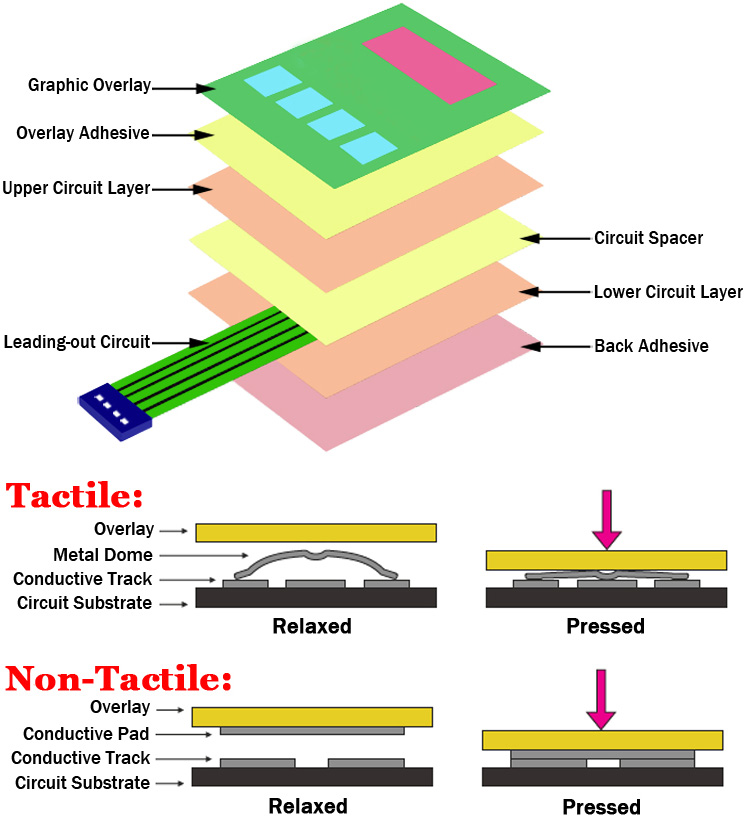

Unlike a standard push button, a membrane keypad can integrate several functions into one thin component, including:
Graphic overlay
Membrane circuit
Metal dome tactile switches
LEDs or backlighting
FPC or PCB circuits
Adhesive layers
Display windows
Embossed buttons
Connector and tail options
The complete design can be customized according to the equipment and application.
Why Choose a Custom Membrane Keypad?
A custom membrane keypad can provide several advantages for equipment manufacturers.
1. Low-profile design
Membrane keypads can be designed with a very thin structure, making them suitable for equipment where installation space is limited.
2. Customized button layout
The number, size and position of buttons can be designed according to the equipment's control requirements
3. Customized tactile feedback
Metal domes can be used to provide tactile feedback when a key is pressed. Different dome sizes and operating forces can be selected according to the required user experience.
4. Graphic customization
The graphic overlay can include company logos, symbols, numbers, text and function indicators.
Sealed construction
A properly designed membrane keypad can provide a sealed user interface that is easier to clean and can help protect the internal circuit from dust and moisture.
What Should You Tell a Membrane Switch Manufacturer?
Before requesting a quotation, it is helpful to provide as much information as possible.
Important specifications include:
1. Overall keypad dimensions
2. Number of keys
3. Key position and layout
4. Circuit requirements
5. Operating voltage and current
6. Connector or tail specification
7. Required operating force
8. Tactile or non-tactile design
9. Material requirements
10. Graphic overlay material
11. Backlighting requirements
12. Environmental conditions
13. Required quantity
14. Expected service life
A drawing, CAD file or existing sample can significantly speed up the engineering process.
The manufacturer's ability to understand the complete application is often more important than simply offering the lowest unit price.
JCF Technology Custom Membrane Keypad Solutions
JCF Technology specializes in customized membrane switches and membrane keypads, including traditional membrane switches, FPC membrane switch keypads, PCB membrane switches, LED backlighting membrane switches and capacitive membrane panels.
For a new project, customers can provide a drawing, sample or basic technical requirements. The engineering team can then evaluate the structure and recommend a suitable membrane keypad solution.
If you are looking for a custom membrane keypad supplier, selecting a supplier with engineering, manufacturing and quality-control capabilities can help reduce design problems and improve long-term product reliability.
