Membrane Switch Technology

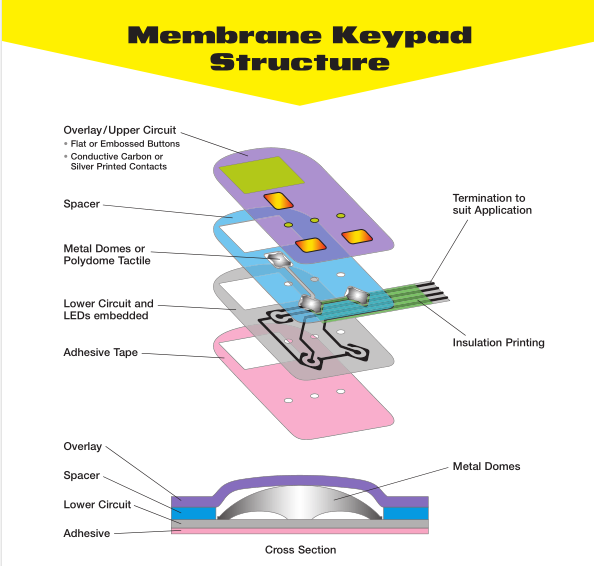

Progress and Applicationsintroduce Membrane switch technology has become a key component in various industries due to its flexibility, durability and versatility. This technology has revolutionized the way we interact with electronic devices, providing a more intuitive and user-friendly experience. In this article, we will explore the advancements in membrane switch technology, how they work, and their wide range of applications.working principle Membrane switches are thin, flexible components that combine different layers of materials to create a switching interface. Typically, it consists of three main layers: graphic overlay, spacer layer, and circuit layer. Graphic overlay is the top layer that displays buttons or symbols and is made of materials such as polyester or polycarbonate. A spacer layer separates the graphic overlay from the circuit layer, ensuring proper switch operation. The circuit layer consists of conductive traces that allow electrical signals to pass through when pressure is applied.

When the user applies pressure to specific areas on the graphic overlay, it compresses the pad and conductive traces make contact, completing the circuit. This electrical signal is then transmitted to the device, triggering the desired response. Membrane keypad switches can be designed as simple on/off switches or as more complex interfaces with multiple buttons and functions.Advances in Membrane Switch Technology has made significant advances over the years, improving its performance, reliability and durability. One notable development is the use of reinforcing materials such as flexible circuits. These circuits offer greater flexibility and resistance to environmental factors such as temperature and humidity.

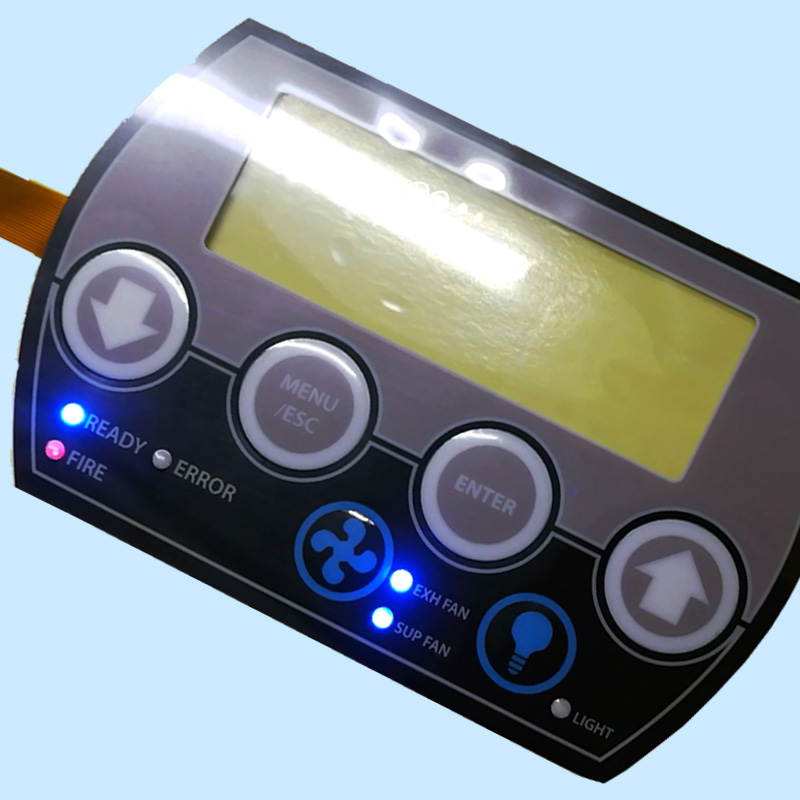

Additionally, the use of high-quality printing techniques and materials results in better graphics and longer-lasting coverage. Another significant advancement is the integration of backlight options within membrane switch panel. This allows for better visibility in low-light conditions and adds to the aesthetics of the interface. Backlighting can be achieved through different methods such as LED technology or fiber optics, thus offering a variety of design possibilities.

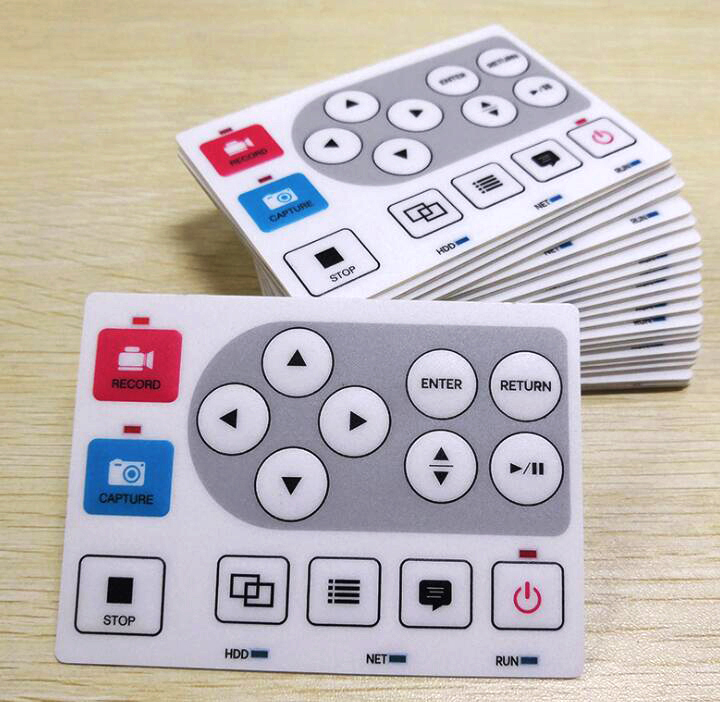

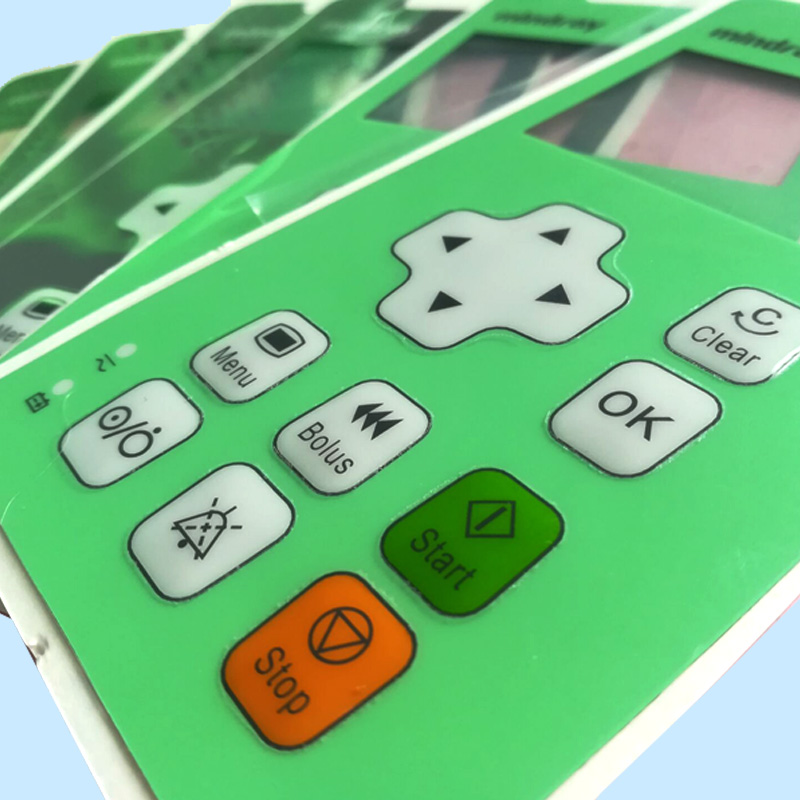

Advances in printing technology have enabled the creation of more complex and customized graphic overlays. With the ability to print complex designs, including a variety of colors, textures, and textures such as relief and embossing, manufacturers can create membrane switches keypad that are visually appealing and user-friendly.
