How are poly dome membrane keyboards used in electronic devices?

2024-11-04

　

Poly dome membrane keyboards are a common type of user interface found in many electronic devices.

They combine a polyester dome switch mechanism with a flexible membrane layer to provide tactile feedback while being compact and cost-effective. Below is an overview of their role, use cases, and advantages in electronic devices.

How Poly Dome Membrane Keypads Work

Structure:

A polyester dome forms the tactile layer, which collapses when pressed and provides a "clicky" feedback.

Beneath the dome are printed conductive traces on the membrane layer.

When the dome is pressed, it makes contact with the conductive traces, closing the circuit and registering the keystroke.

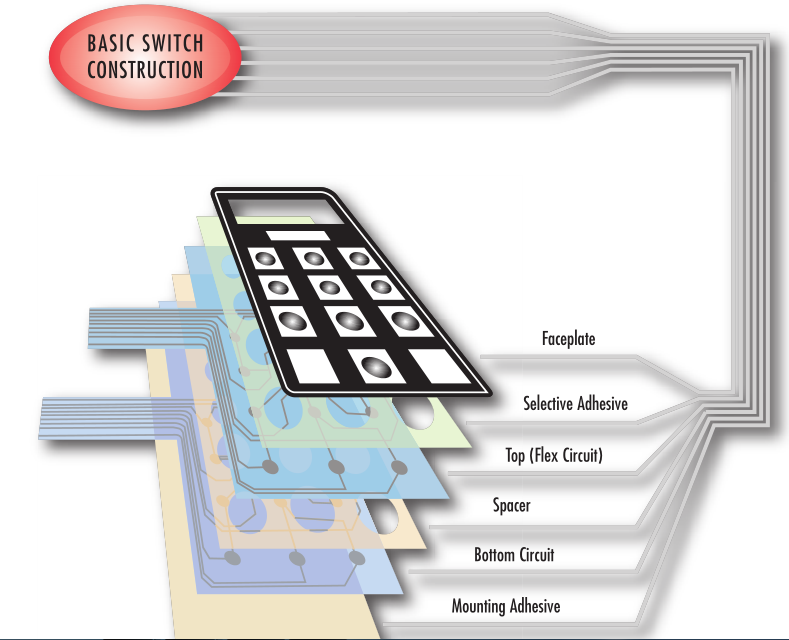

Layers Involved:

Top layer: Printed graphic overlay with labels and symbols.

Spacer layer: Keeps the circuits separated until the dome is pressed.

Bottom layer: Contains printed circuitry for signal transmission.

Advantages of Poly Dome Membrane Keyboards

Tactile Feedback: The dome provides a noticeable "click" when pressed, improving the user experience.

Durability: Polyester domes are resistant to mechanical wear, and the entire assembly can be sealed against dust and moisture.

Customizability: Graphic overlays and layouts can be tailored for specific devices.

Thin and Lightweight: Ideal for devices where space is a concern.

Cost-effective: Relatively inexpensive to manufacture in high volumes compared to mechanical key switches.

Challenges and Limitations

Limited Key Travel: Poly dome keyboards have shallower key travel compared to mechanical keyboards.

Reduced Lifespan: They can wear out over time with heavy use, especially in high-traffic environments.

Less Responsive in Extreme Conditions: Very cold or hot environments can affect the domes’ elasticity.

Poly dome membrane switches are essential in many electronic devices because they provide a balance between tactile feedback, durability, and cost-efficiency. Their adaptability makes them suitable for various industries, from consumer electronics to medical and industrial equipment.
