What is LEDs membrane keypad？

2026-01-07

　

LED membrane switch keypads (also known as LED-backlit membrane switches or illuminated membrane keypads) are a type of user interface that combines the thin, flexible design of membrane switches with integrated Light Emitting Diodes (LEDs) for backlighting.

What is a Membrane Switch Keypad?

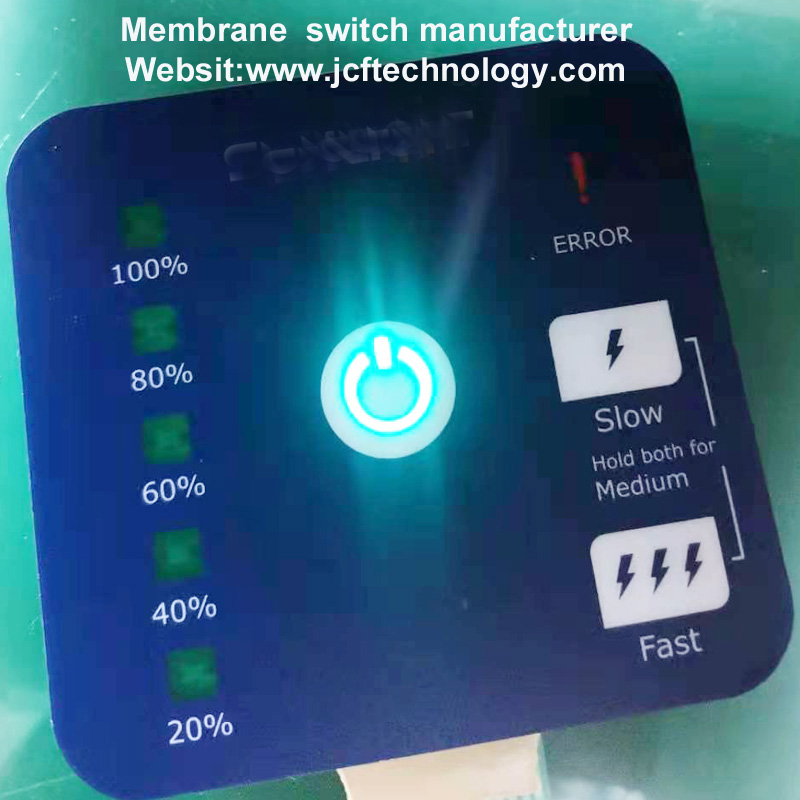

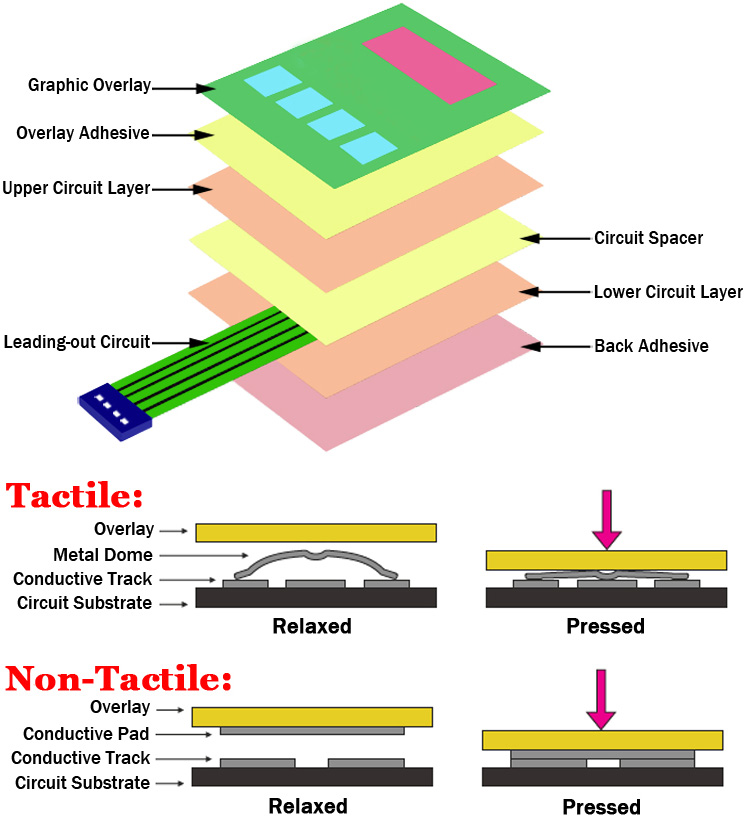

A membrane switch keypad is a low-profile, sealed electrical switch consisting of layered flexible materials (typically polyester or polycarbonate films) with printed conductive circuits. Pressing a key temporarily closes the circuit (often with tactile feedback from metal domes), making them durable, waterproof, and cost-effective for devices like microwaves, medical equipment, industrial controls, and remote controls.

How LEDs Are Integrated

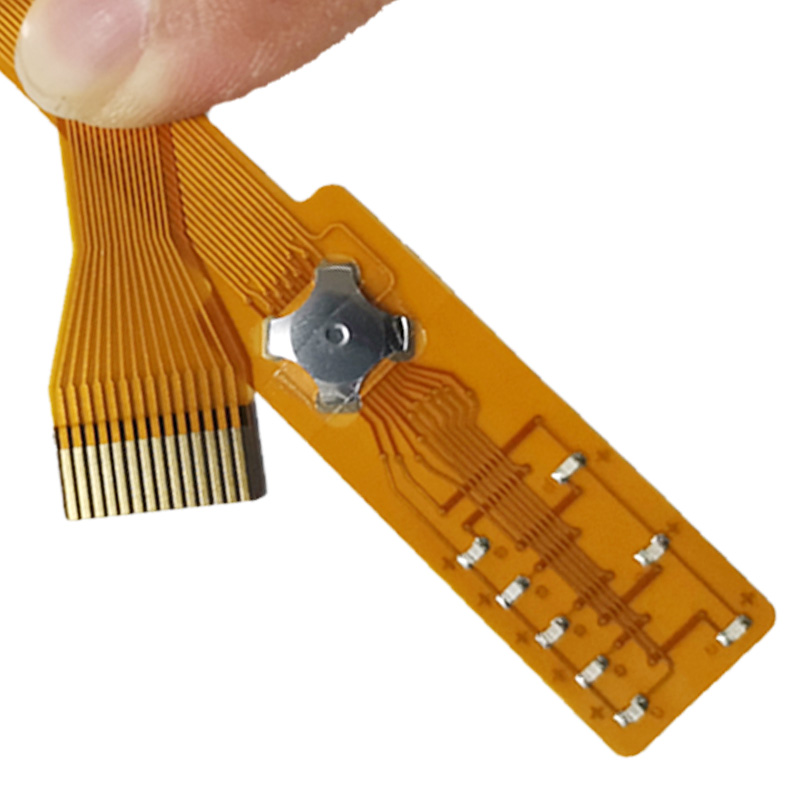

LEDs are embedded or mounted within the layers to illuminate keys, icons, logos, or the entire surface. Common methods include:Discrete LEDs — Surface-mounted directly on the circuit layer for indicators or selective lighting (simple and economical but may create bright spots).
Side-firing LEDs with Light Guide Film (LGF) — LEDs on the edges shine into a thin film that evenly distributes light across larger areas, providing uniform backlighting with minimal thickness and power use.
Other options like fiber optics or electroluminescent (EL) panels exist, but LEDs are the most popular due to longevity (up to 100,000 hours), low heat, low power consumption, and color variety (including RGB for dynamic effects).

These keypads are often custom-designed, slim (under 3mm thick), and sealed against dust/moisture (IP-rated).AdvantagesImproved visibility in low-light or dark environments.
Enhanced aesthetics and user experience (e.g., "night mode" or status indicators).
Long lifespan, energy efficiency, and reliability in harsh conditions.

Applications:Medical devices, automotive dashboards, aerospace controls, consumer electronics, and industrial machinery.
