Not inherently, but many can be designed to be highly water-resistant or waterproof.

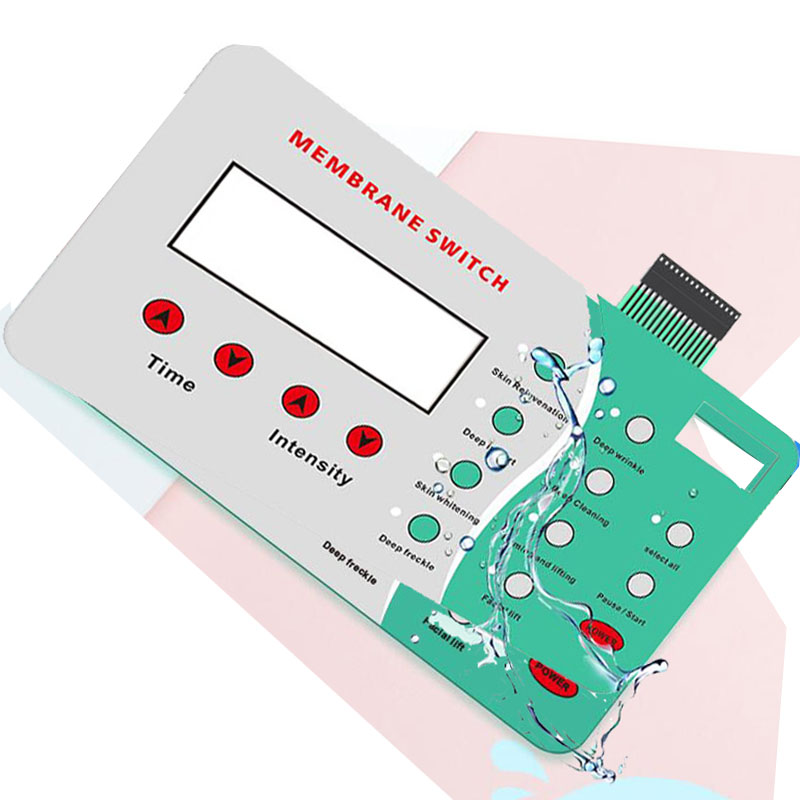

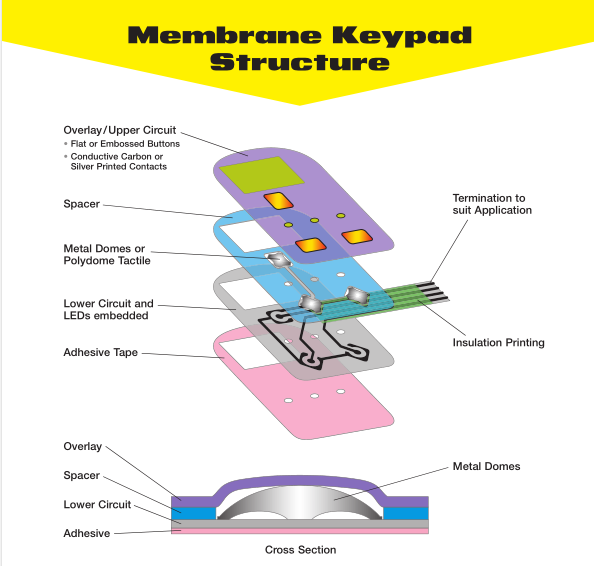

Membrane switches (thin, layered plastic film constructs with conductive traces used in keypads and HMIs) vary in their moisture protection based on construction. Standard ones offer basic resistance to light splashes or humidity but aren't fully sealed against heavy exposure. Specialized versions achieve high levels of waterproofing through design features.
Membrane keypad Key Factors for Waterproofing IP Ratings
These define protection levels (per IEC standards):
IP65: Dust-tight and protected against water jets/splashes. Common for many membrane switches.
IP66: Dust-tight and resistant to powerful water jets.
IP67: Dust-tight and can withstand temporary immersion (e.g., up to 1m for 30 minutes).
IP68: Dust-tight and suitable for continuous or deeper submersion (e.g., 1.5m for 30 minutes). Manufacturers produce these for outdoor or harsh environments.
Membrane switch Design Techniques
Waterproof versions often use:
Frame seal gaskets or edge sealing.
Specialized adhesives for airtight layers.
Copper flex circuits or additional rubber/silicone overlays.
Proper venting or potting where needed.
Membrane keypad switch Practical Considerations Basic
Membrane switches may handle minor spills or condensation but can fail if water reaches the conductive layers.

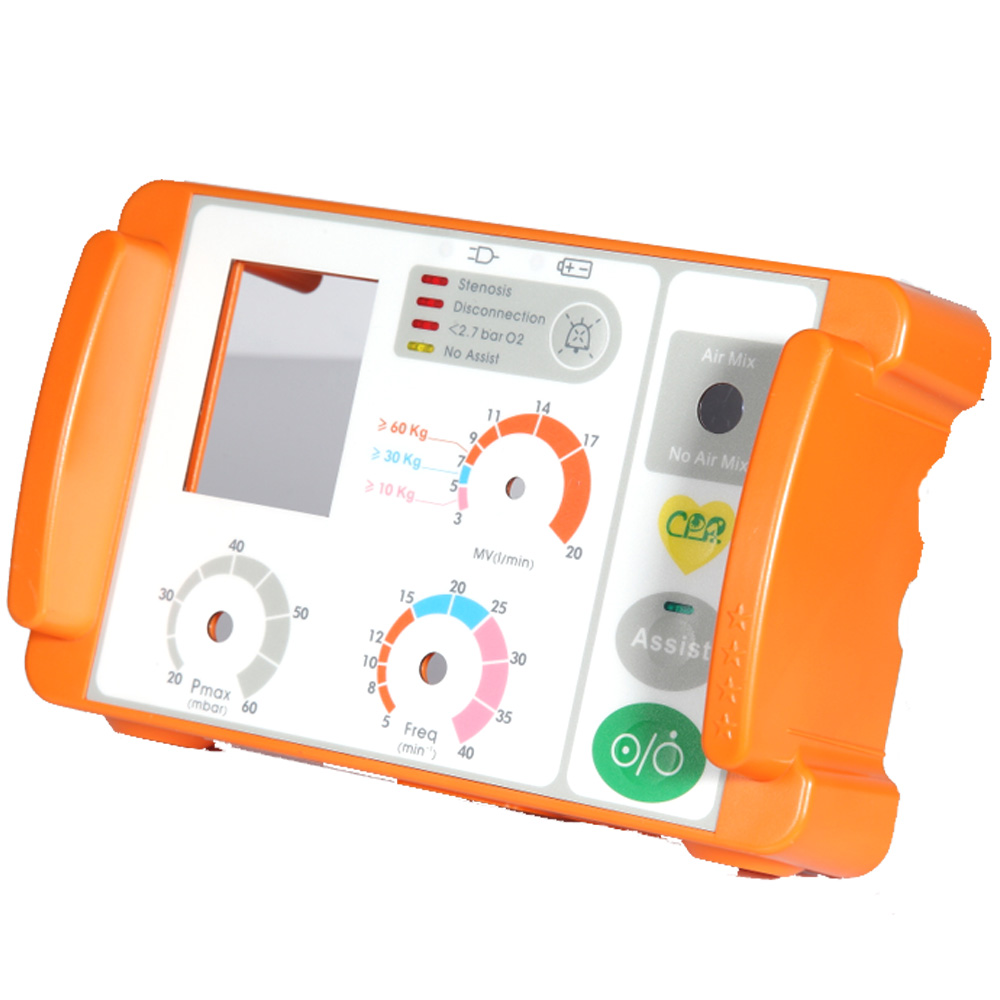

Purpose-built waterproof ones work reliably in wet, outdoor, industrial, or medical settings (e.g., washdown areas, marine equipment).
Always check the manufacturer's specs and IP rating for your application.
In short, membrane switches are not automatically waterproof, but they can be engineered to meet demanding water and dust resistance standards.
